CLRM New Type Pendulum Roller Mill

Features of CLRM New Type Pendulum Roller Mill

CLRM New Type Pendulum Roller Mill is mainly suitable for grinding various non-flammable and explosive mineral materials with Mohs hardness below 6 and temperature below 6%. application. The finished granules can be adjusted arbitrarily within the range of 50-325 mesh. The main processing materials are: quartzite, feldspar, barite, calcite, limestone, talc, ceramics, iron ore, silicon carbide, bauxite, marble, phosphate rock, coal, slag and other more than 400 kinds of materials.

The standard configuration of this new type of suspension roller mill includes main engine, reducer, powder separator, powder collector, dust collector, fan, electric control cabinet and link pipeline. Optional accessories are crusher, bucket elevator, feeder.

Application range: calcium carbonate crushing processing, gypsum powder processing, power plant desulfurization, non-metallic ore pulverizing, coal powder preparation, etc.

Materials: Quartz, feldspar, barite, calcite, limestone, talc, ceramics, iron ore, silicon carbide, bauxite, marble, phosphate rock, coal, slag and other more than 400 kinds of materials.

Production Capacity: 1-35t/h

Finished Fineness: 80-500 mesh


Performance advantage of CLRM New Type Pendulum Roller Mill

1. Optimized grinding part, increase grinding efficiency

Compared with the previous mill the grind pressure increased 10%, grinding area up 15 -20%. Optimized the roller layout, escalated the efficient grinding space.

2. Triple vibrating damping for working stability

Triple damping to resist the vibrating transmission in the main unit base, volute airflow house, unit body, grinding part. Be sure the stable grinding condition.

3. New type impeller of classifier with VFD

Equipped the new cage type impeller for classifier, adjust the speed freely by VFD, enlarge the output size range to 80 425 mesh.

4. Grinding device adopts superimposed multistage seal, prolonging the lubricating cycle.



Structure and composition

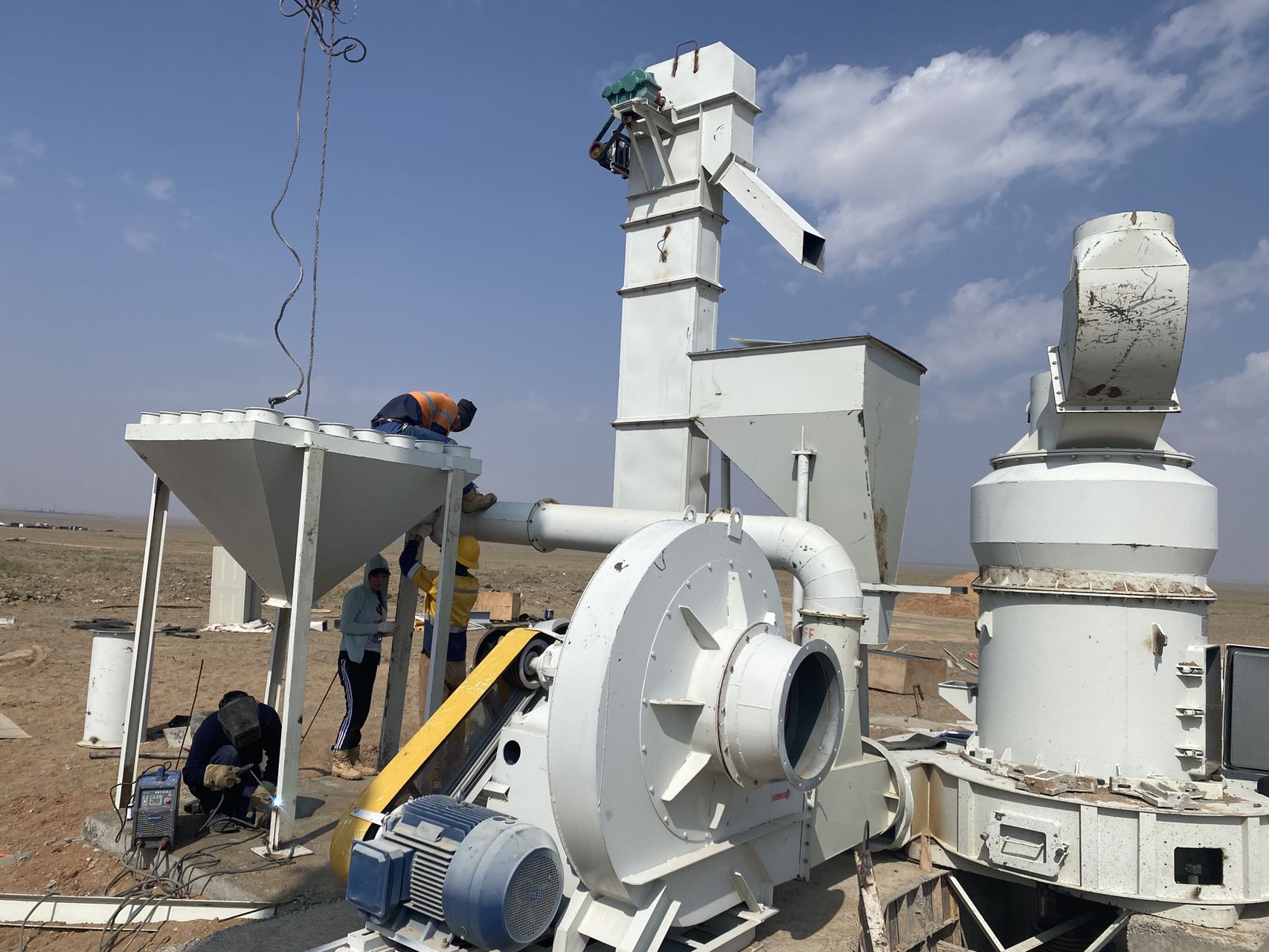

The standard configuration of CLRM New Type Pendulum Roller Mill includes main engine, reducer, powder separator, powder collector, dust collector, fan, electric control cabinet and link pipeline. Optional accessories are crusher, bucket elevator, feeder.


Matters needing attention in the work of Raymond mill

The first is that during the use of the pulverizer, professional staff should take care of it. Equipment operators must have a certain relevant technical level. Before the mill is installed, the operator must have the necessary technical training, so that they can understand the principle and performance of the mill, and be familiar with the operating procedures, so as not to be unable to solve the problem in time.

Secondly, in order to make the pulverizer work normally, relevant safety operation instructions should be formulated to ensure the long-term safe operation of the equipment. At the same time, the equipment should be equipped with necessary maintenance tools, grease and corresponding accessories.

During the use of the pulverizer, regular maintenance should be carried out. At the same time, it is necessary to pay attention to the maintenance of the wearing parts such as the grinding roller, grinding ring, blade, etc. If it is worn, it should be replaced immediately to avoid greater damage.


Working principle

After being crushed to the required particle size by the jaw crusher, the super-large block materials are sent to the storage hopper by the elevator, and then evenly and quantitatively sent to the main machine grinding chamber by the vibrating feeder for grinding. The powder enters the large cyclone collector through the pipeline with the air flow of the fan, and is separated and collected, and then discharged through the powder valve to be the finished fine powder. The airflow is sucked into the blower by the return air duct at the upper end of the large cyclone collector. The entire airflow system of the machine is closed and micro-circulated, and it circulates in a positive and negative pressure state.
