CLQM Vortex Flow Powder Pulverizer Machine

The CLQM Series Vortex Flow Powder Pulverizer Machine is a versatile and efficient machine designed to make your material processing tasks easier and more effective. Whether you're working in industries like chemicals, pharmaceuticals, food, or even ceramics, this machine has you covered. It’s great for handling a wide range of materials, from soft powders to more challenging substances, grinding them down to ultra-fine particles.

What Makes the CLQM Micronizer Special?

1. Versatility in Action:

This machine is like a multitool in your workshop. It can handle everything from chemicals to pigments, and even heat-sensitive materials like some food products or fibers. It grinds materials down to very fine sizes—micron and even sub-micron levels—so you can get just the texture you need.


2. Easy Adjustments:

With the CLQM Micronizer, you can tweak the fineness of your product on the fly. There’s no need to stop the machine to make changes. Plus, it’s designed to recover every bit of fine powder, so you don’t have to worry about waste or pollution.


3. Cool Under Pressure:

This machine stays cool, even during intense grinding sessions. It’s equipped with an air cooling system, making it perfect for processing materials that are sensitive to heat. And if you need even more cooling power, you can add water or cold air systems.


4. Simple to Use and Maintain:

Nobody likes spending too much time on maintenance, and with the CLQM, you won’t have to. It’s designed for easy operation and cleaning, so you can focus more on getting your work done. It’s also got a high production capacity, so it won’t hold you back when you’ve got a lot to process.


5. Smooth and Efficient:

The machine runs smoothly and efficiently thanks to its new V-belt drive system. It’s got the power you need without all the noise and vibration, making it a pleasure to use.


6. Top-Notch Quality:

The CLQM Micronizer is built to last, using high-quality imported bearings and precision-balanced parts. You don’t need to worry about setting up a special foundation for it—just place it on a flat surface or use vibration pads, and you’re good to go.


Composition of CLQM Vortex Flow Powder Pulverizer Machine

1. 1.Unit base
2. 2.Lower body
3. 3.Main bearing assembly
4. 4.Middle body
5. 5.Fixed blocks
6. 6.Mill disc
7. 7.Airflow baffle
8. 8.Classifier impeller
9. 9.Upper cover
10. 10.Discharge port
11. 11.Classifier bearing assembly
12. 12.Hopper
13. 13.Feeding part



How Does It Work?

Inside the machine, the grinding chamber is where the magic happens. The material is fed in, and the grinding disc breaks it down into fine powder. This powder then moves into the classification chamber, where it’s sorted into the right sizes. The fine particles are collected as finished products, while the larger ones are sent back for more grinding.



Keeping Things Clean

Dust is always a concern when working with fine powders, but the CLQM Micronizer comes with a built-in dust collection system. For everyday use, a simple dust collector gets the job done. However, if you’re dealing with very fine dust or high-value materials, you might want to go for the pulse dust collector. This advanced system makes sure that even the tiniest particles are captured, keeping your workspace clean and safe.

In short, the CLQM series Airflow Vortex Micronizer is a reliable, easy-to-use, and efficient tool for anyone who needs to grind materials into fine powders. It’s built with versatility and user-friendliness in mind, making it a great addition to any workshop or production line.

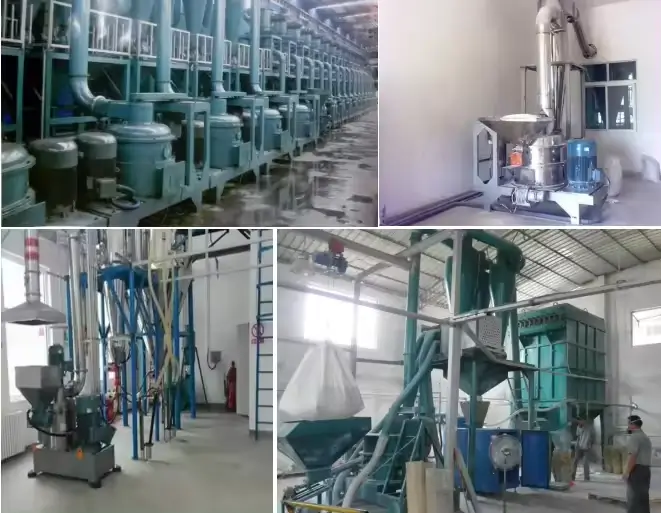

5 Configurations of CLQM Production Lines

1. CLQM Series Simple Dust Collector Complete Set


2. CLQM Series Pulse Dust Collector With Classifier Complete Set



3. CLQM Series Pulse Dust Collector With Classifier Complete Set


4. CLQM Series Pulse Dust Collector With Mixer Complete Set


5. CLQM Series Simple Dust Collector With Vibrating Screen Complete Set
